Original price was: $189.99.$96.99Current price is: $96.99.
- Product guarantee 100% satisfaction
- Get the Best for Less
- Service with a smile, always online.
- Green products, guaranteed.

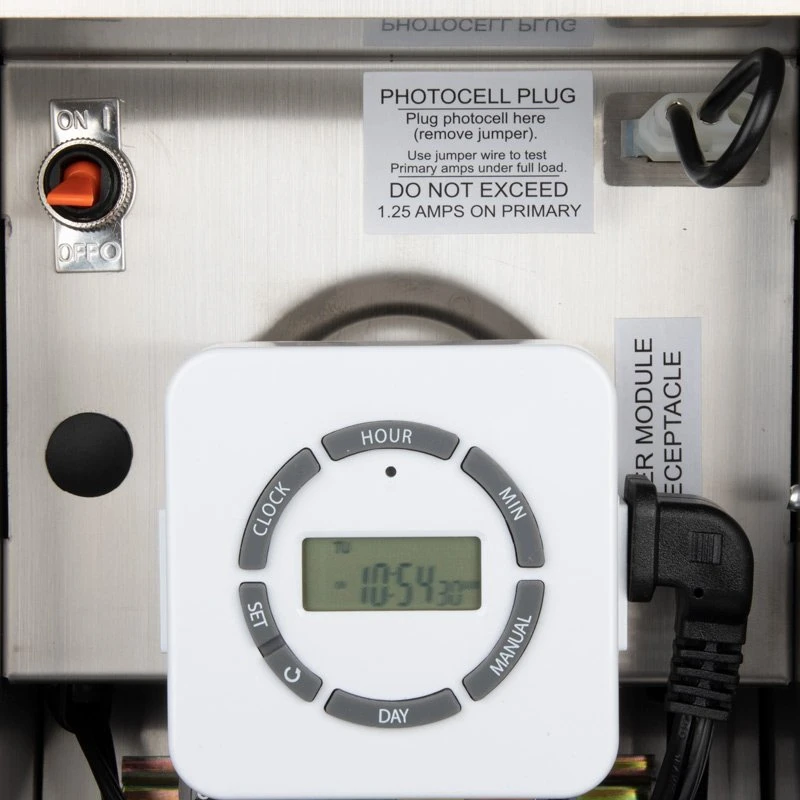

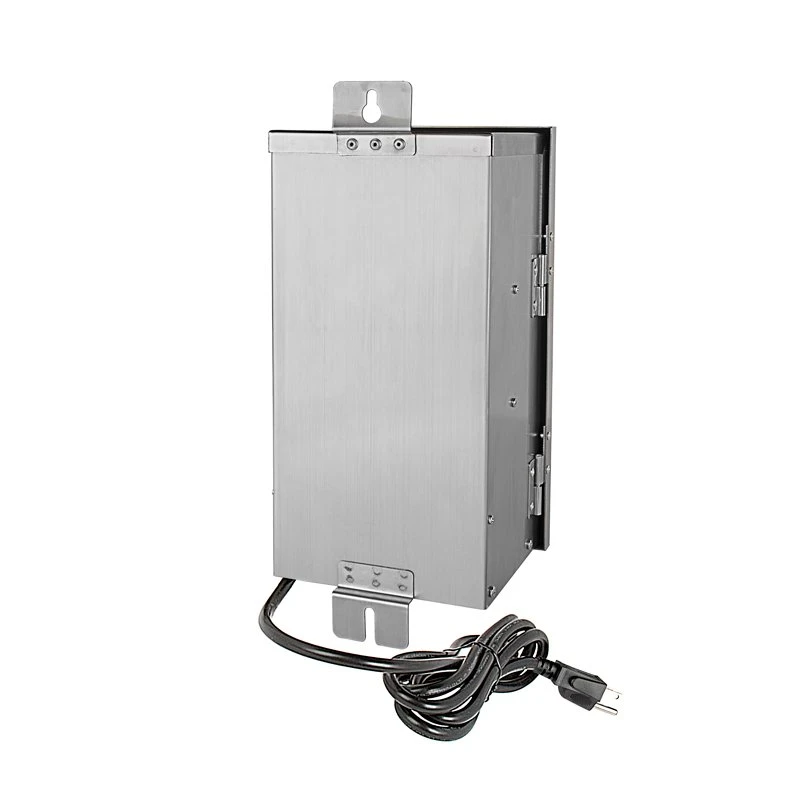

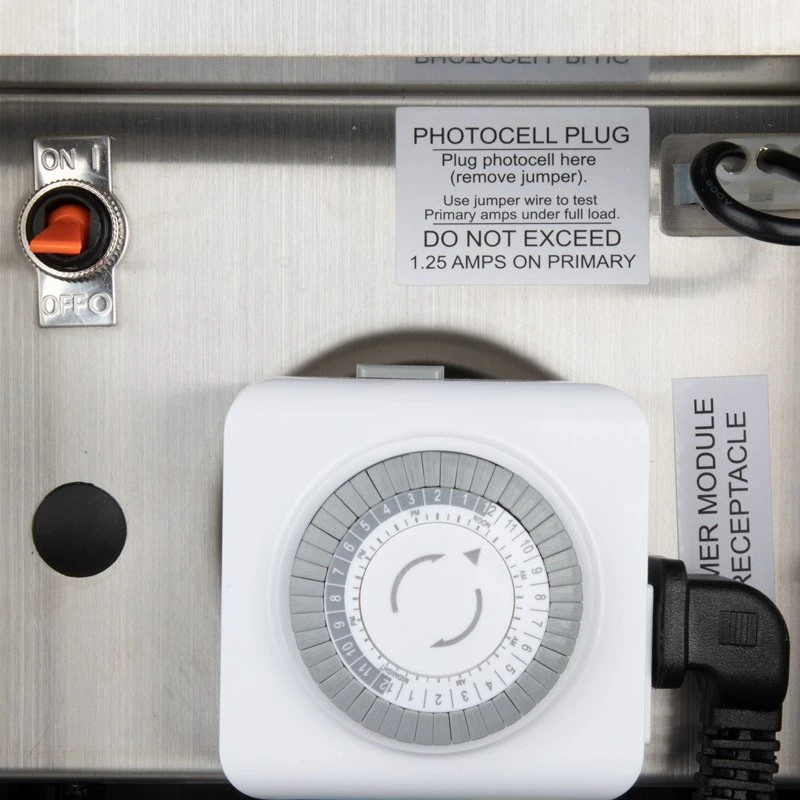

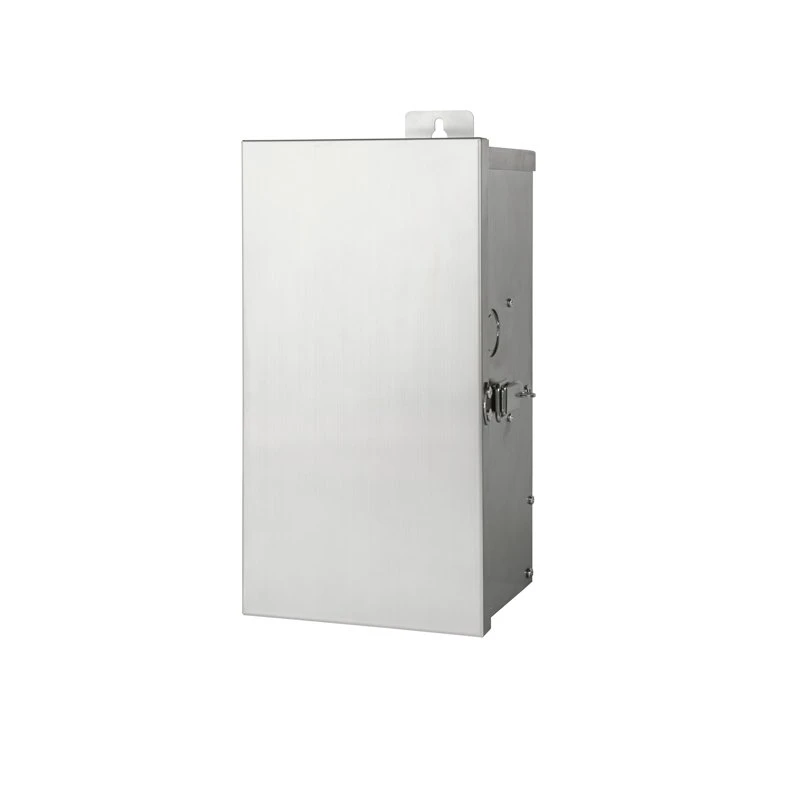

The landscape lighting transformer by DiodeDrive is rated for up to 150 watts of power. Using the 12V, 13V, 14V, and 15V screw-terminal voltage taps, install longer lighting runs without worrying about voltage drop. The stainless steel landscape lighting transformer has a toroidal core for efficient, quiet operation and is equipped with 1/2″ knockouts for wiring, and photocell operation. The transformer plugs into 3-prong outlets. Use a compatible mechanical or digital timer for automatic operation, or use an optional photocell for dusk-to-dawn operation.
Product Details:
- Stainless steel construction
- Overload and short circuit protection
- Input 120 VAC, Output 12V, 13V, 14V, and 15V AC
- Output current: 12.5 Amps total

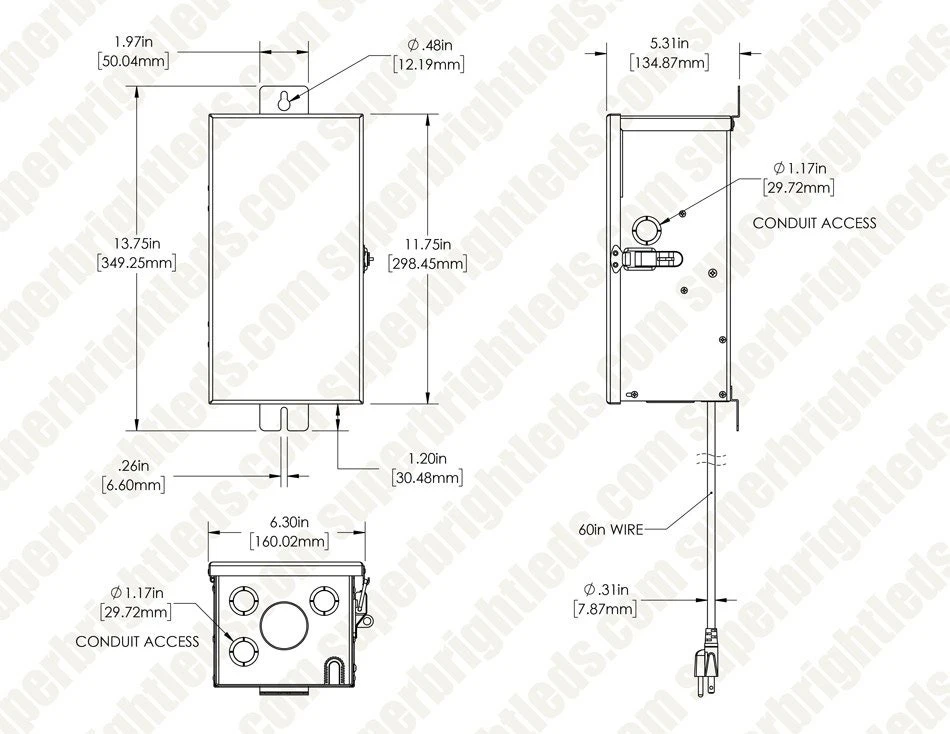

- 1/2″ knockouts – three on the bottom, one on the side
- ETL Listed
- 5-year warranty
| Brand | DiodeDrive |
|---|---|
| Power Consumption | 150 Watts |
| Warranty | 5 Year |
| Voltage | 120 VAC |
| UL Standard | UL 1838 (IFDH) |
| Timer | Optional Timer |
| Standards And Certifications | ETL Listed |
| Product Weight | 13lb 0oz (5.9kg) |
| Photocell Options | Optional Photocell |
| Channels | 1 Channel |
| Output Voltage | 12/13/14/15 VAC |
| Operating Temperature | -45~+45 °C (-49~+113 °F) |
| Material | Stainless Steel |
| IP Rating | IP65 |
| Input Connection Type | Screw Terminal |
| Finish | Stainless Steel |
| Dimmable | No |
| Wire Length | 5 ft (1.5 m) |
