10″ Linking Off-Road LED Light Bar – Modular – 45W – 4700 Lumens – Driving Beam

Home / Emergency & Service / LED Light Bars
Sale!

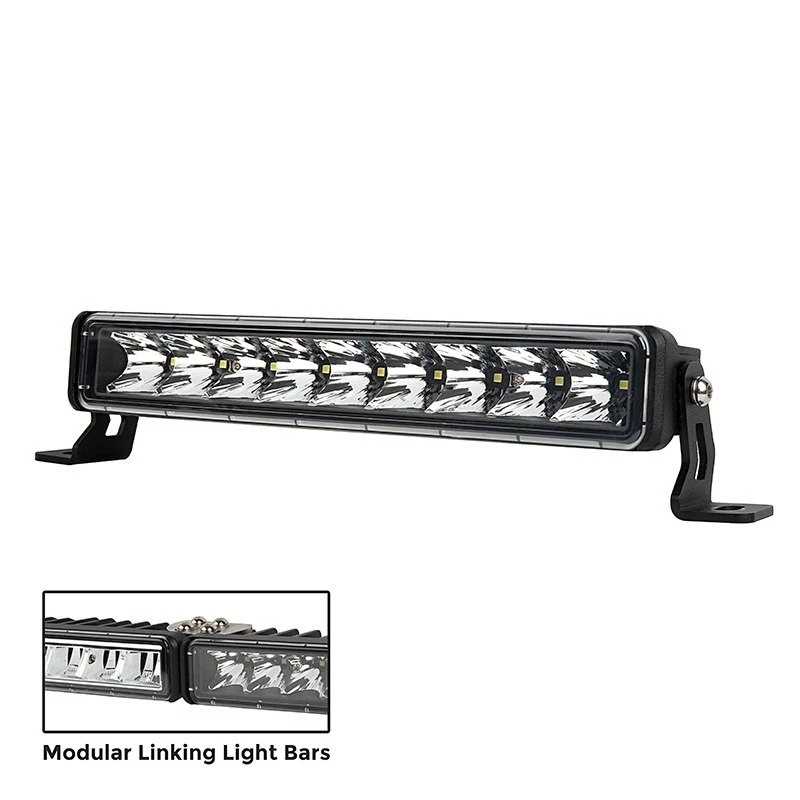

10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 2
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 3
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 4
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 5
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 6
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 7
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 8
10" Linking Off-Road LED Light Bar - Modular - 45W - 4700 Lumens - Driving Beam - Image 9

$54.99 Original price was: $54.99.$38.49Current price is: $38.49.

Buy Now
SKU: ORBD10-45WS-DB Categories: Emergency & Service, LED Light Bars Tag: Super Bright LEDs
  • Product guarantee 100% satisfaction
  • Get the Best for Less
  • Service with a smile, always online.
  • Green products, guaranteed.
Browse
  • Emergency & Service
    • LED Hideaway Strobe Lights
    • LED Light Bars
    • LED Light Pods
    • LED Strobe Beacons
  • LED Landscape Lighting
    • In-Ground Well Lights
    • LED Deck and Step Lights
    • LED Hardscape Lighting
    • LED Landscape Lighting Kits
    • LED Path Lighting
    • Low-Voltage Transformers
    • Outdoor LED Flood Lights
    • Outdoor LED Spot Lights
    • Underwater Lighting
    • Wall Wash Lighting
  • LED Strip Lights & LED Bars
    • Color Changing Flexible LED Strip Lights
    • Single Color Flexible LED Strip Lights
    • White Flexible LED Strip Lights
  • Residential Lighting
    • Flush Mount Ceiling Lights
    • LED Grow Lights
    • LED Panel Lights & Troffer Lights
    • Outdoor Wall Lights
    • Patio String Lights
    • Portable LED Work Lights
    • Smart Lighting
    • Under Cabinet Lighting
    • Wall Switches and Dimmers
  • Uncategorized
  • Description
  • Additional information
  • Reviews (0)

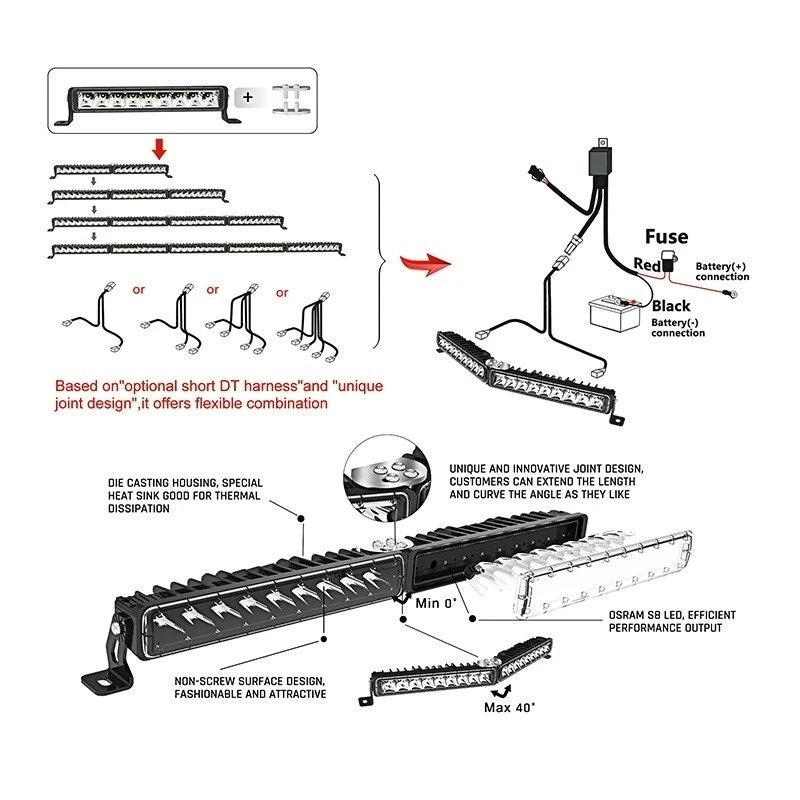

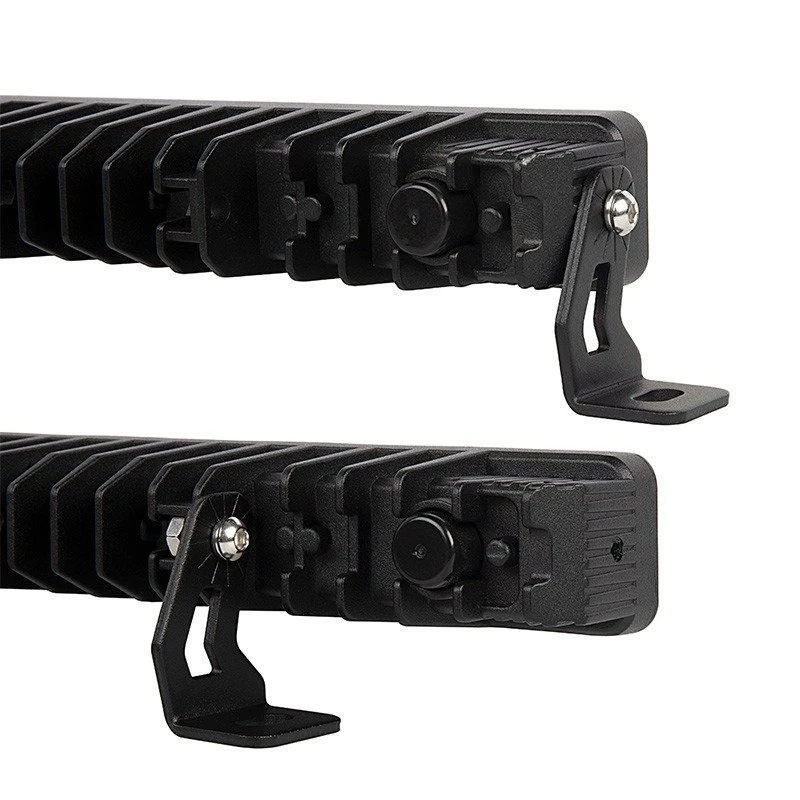

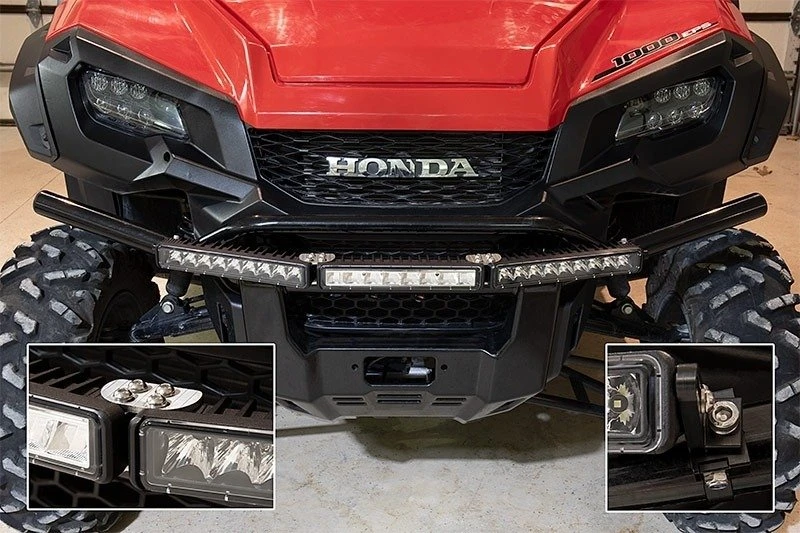

Our 10-inch linking off-road LED light bars allow you to select and configure a customized vehicle lighting package. The modular 45-watt light bar has a driving beam designed for various off-road applications. Link up to five 10-inch light bars together in any configuration to create a unique lighting system for your off-road driving needs. Heavy-duty steel plates securely connect bars in a straight line or at an angle of up to 40 degrees. The rugged die-cast aluminum housing and impact-resistant polycarbonate lens are IP67 rated for protection against dust and moisture for lasting durability in harsh outdoor conditions. Each fixture has four mounting points for custom mounting options. A power wire, DT pigtail adapter, and hardware for easy installation are included.

Note: When operating this light, please follow local laws. It may not be suitable for on-road applications.

Product Details:

  • Aluminum housing and polycarbonate lens

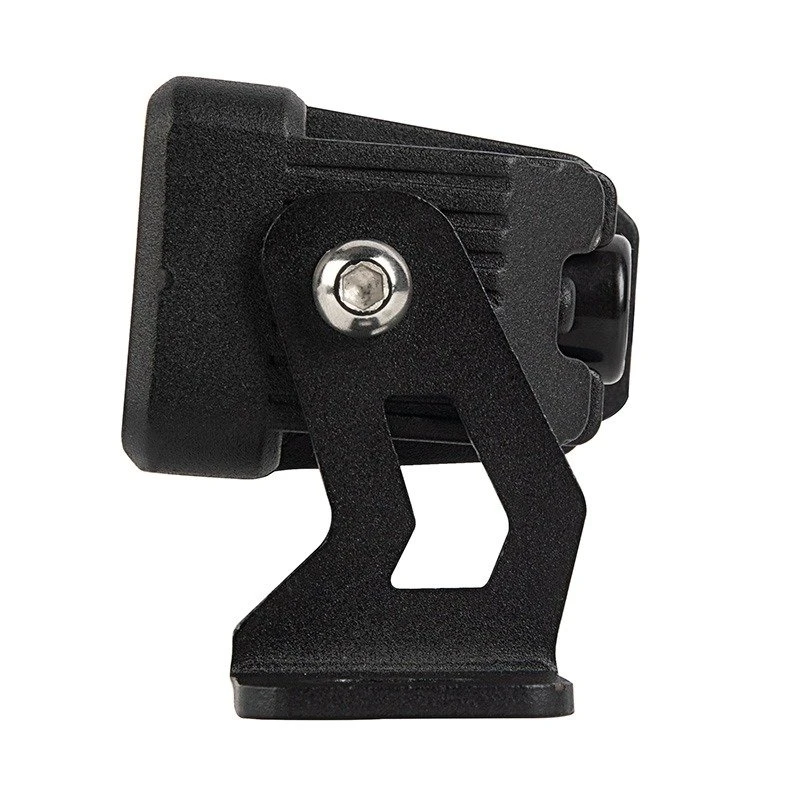

  • Powder-coated steel mounting brackets, stainless steel hardware
  • IP67 rated (submersible up to 1m for up to 1 hour)
  • Beam angle: 5° x 15°

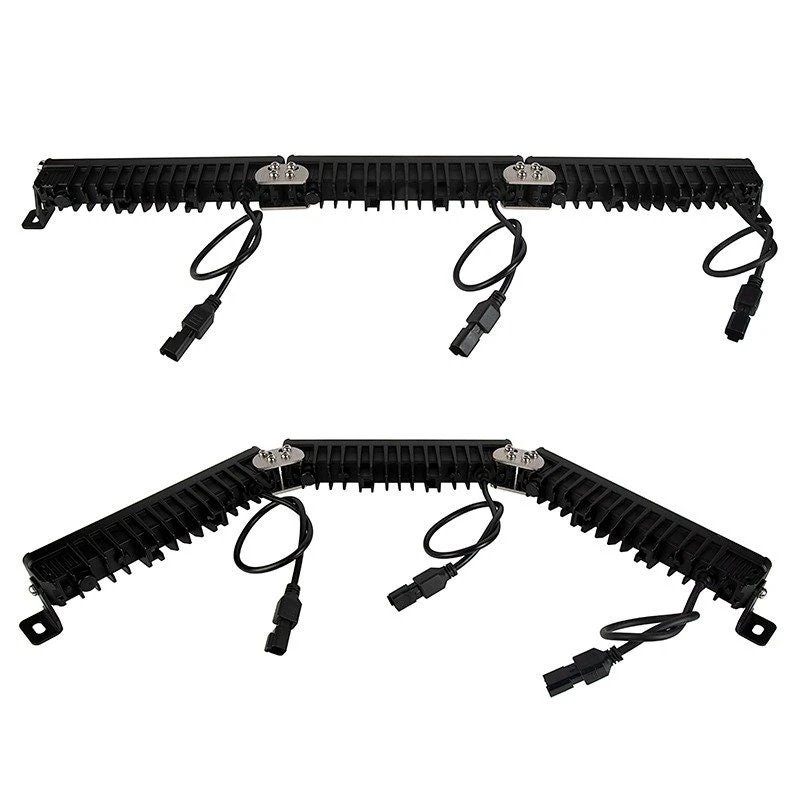

  • Link up to 5 x 10-inch bars
  • 12-32 VDC input voltage
  • Operating Temperature: -4°F to 149°F (-20°C to 65°C)
  • 50,000-hour (L70) lifespan
Beam Angle

5° x 15°

Beam Pattern

Driving

Current Draw

3.8 A @ 12 VDC

Finish

Black

Connector

DT Connector

IP Rating

IP67

Color Options

Cool 6500K

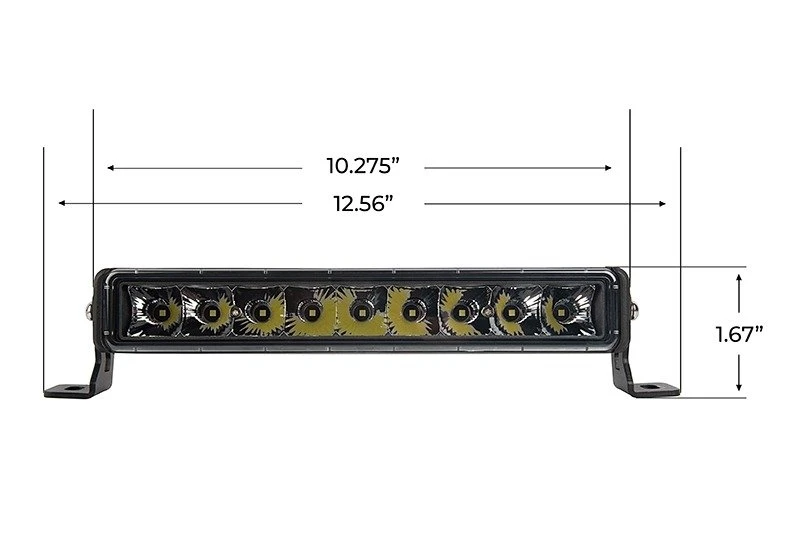

Size

10in (0.83ft)

Lumen

4700 Lumens

Material

Aluminum Housing, Polycarbonate Lens, Powder Coated Steel Brackets, Stainless Steel Hardware

Ambient Operating Temperature

-20~+65 °C (-4~+149 °F)

Voltage

12-32 VDC
